Mutations: Creating Links

In this section, you’ll learn how you can send mutations with Relay.

Preparing the React components

Like before, let’s start by writing the React component where users will be able to add new links.

This is a standard setup for a React component with two input fields where users can provide the url and description of the Link they want to create. The data that’s typed into these fields is stored in the component’s state and will be used in _createLink when the mutation is sent.

Great, but how can you now actually implement _createLink and send the mutation?

Writing the Mutation

Mutations were one of the major pain points developers had with Relay Classic. The way that they were implemented was in a declarative and powerful way. However, it was very difficult to actually understand how they worked since there was so much magic going on behind the scenes. As a result, the main concern was that they’re not predictable enough and developers had a hard time reasoning about them.

That’s why one of the major goals of Relay Modern was also to introduce a new and more approachable mutation API. The Facebook team delivered that and Relay now exposes a more imperative API that allows you to manipulate the local store directly (actually, the manipulation happens through a dedicated proxy object, but it’s definitely much more direct than before). You’ll learn about this new API to update the cache in a later chapter - for now we’re only interested in performing a mutation to create a new link.

Let’s quickly walk through the different things that happen here:

1. First you need to import the right modules from react-relay as well as the environment.
2. Here you write a simple mutation and tag it with the graphql function. This mutation could also be used inside a Playground.
3. The module exports a single function that takes in the post’s description and url as well as a callback that will be called when the mutation is completed.
4. Here you prepare the input object for the mutation that wraps the description and url. Note that the clientMutationId is required in this case because of a minor limitation in the Graphcool API - it has no function.
5. The commitMutation function can be used to send a mutation to the server with Relay Modern. You’re passing the variables that you prepared in the previous steps and execute commitMutation once everything is ready.
6. Once the mutation is fully completed, the callback that the caller passed in is invoked.

Calling the Mutation

With the CreateLinkMutation in place, you now need to implement the functionality to actually call it. You’ll do that inside the CreateLink component.

For this code to work you also need to import the CreateLinkMutation at the top of the file:

To test the mutation, you now need to render the CreateLink component inside the app’s root component.

Before you’re running the app to test the mutation, you need to invoke the Relay Compiler again.

This time, the __generated__ directory is created in the mutations folder and contains a Javascript representation for the CreateLinkMutation.

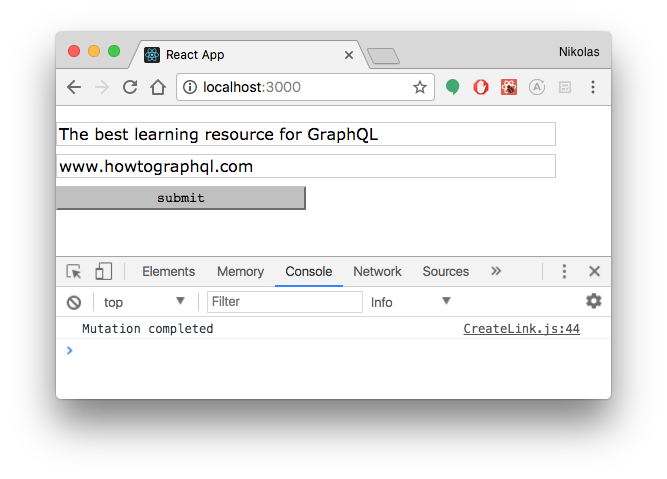

You can now finally go ahead and test the mutation. Run yarn start, you’ll be greeted with a very simple screen: Two input fields and a submit-button - not very pretty but functional.

Enter some data into the fields, e.g.:

• Description: The best learning resource for GraphQL
• URL: www.howtographql.com

Then click the submit-button. You won’t get any visual feedback in the UI, but if you open the browser’s console, you’ll see the string from the log statement that you passed as a callback being printed: Mutation completed.

You can validate if the mutation actually worked by checking the current list of links in a Playground.

Type graphcool playground into a Terminal and send the following query:

{
  allLinks {
    description
    url
  }
}

You’ll see the following server response:

{
  "data": {
    "allLinks": [
      {
        "description": "The coolest GraphQL backend 😎",
        "url": "https://graph.cool"
      },
      {
        "description": "Highly performant GraphQL client from Facebook",
        "url": "https://facebook.github.io/relay/"
      },
      {
        "description": "The best learning resource for GraphQL",
        "url": "www.howtographql.com"
      }
    ]
  }
}

Awesome! The mutation works, great job! 💪
