A Simple Query

In this section, you are going to implement the first API operation that provides the functionality of a Hacker News clone: querying a feed of links that were posted by other users.

Understanding the code-first approach to GraphQL API development

Now that you understand GraphQL schemas a bit better, let’s talk about the workflow you will be using when adding a new feature to the API. When working with a code-first tool like Nexus, the process will look like this:

1. Define the components of your schema (types, fields, root object types, etc) using Nexus.
2. Generate the GraphQL SDL and types.
3. Implement the corresponding resolver functions for the added fields.

Note: Sometimes step 1 and 2 might be iterative instead of linear. During the design and brainstorming process, it is easier to think in terms of the final GraphQL SDL than Nexus code. To convert an SDL to Nexus code, you can always use the Nexus SDL converter.

Extending the schema definition with the Link type

Now that you know the workflow, let’s write some code! Your goal is to implement a feed query that allows you to retrieve an array of Link elements.

You will start by creating the graphql module to organize all your Nexus code.

Now, you will define the Link type. To do this, you will use the objectType function from the nexus library.

objectType is used to create a new type in your GraphQL schema. Let’s dig into the syntax:

• // 1: The name option defines the name of the type
• // 2: Inside the definition, you can add different fields that get added to the type
• // 3: This adds a field named id of type Int
• // 4: This adds a field named description of type String
• // 5: This adds a field named url of type String

Pretty straightforward, right? You’re defining a new Link type that represents the links that can be posted to Hacker News. Each Link has an id, a description, and a url. Additionally, you defined all of these fields to be not nullable.

Now that you have defined the type, you need to hook it up to the makeSchema function that you created previously. You could import Link directly from src/graphql/Link.ts, but since there will be more types to add soon, let’s create a proper module structure. This is where index.ts comes in.

Since index.js or index.ts is accepted as the default entry point to a folder/module in Node.js, you can export everything from the graphql folder here. You can learn more about this behavior in the Node.js docs.

Now update makeSchema to use all the imports coming in from the src/graphql module.

Let’s go through the changes marked with comments:

• // 1: You are importing the graphql model which exports the Link object type through index.ts. The import is named types.
• // 2: You are passing types to the makeSchema function. Nexus will do its thing to generate the SDL from this.

Now let’s take a look at what has changed in schema.graphql:

type Link {
  description: String!
  id: Int!
  url: String!
}

type Query {
  ok: Boolean!
}

Note: If you have a terminal running with npm run dev, your schema should get updated automatically. Otherwise, you can always run npm run generate to make Nexus regenerate your schema.

If you take a look at nexus-typegen.ts, you will see that it has a new Link interface as well. This is really convenient because the interface signature is identical to that of the Link type in your GraphQL schema.

export interface NexusGenObjects {
  Link: { // root type
    description: string; // String!
    id: number; // Int!
    url: string; // String!
  }
  Query: {};
}

Note: One of the major advantages of the code-first approach is that you don’t have to worry about having your GraphQL types and your TypeScript types going out of sync. Since Nexus is the source of truth that generates both, there is no risk of the two mismatching.

Implementing the feed query

Now that the Link type is ready, you will create a feed query to return all the created link objects.

Alright, a lot of things are happening here. Let’s go through the numbered comments to understand what’s going on:

• // 1: The links variable is used to store the links at runtime. For now, everything is stored only in-memory rather than being persisted in a database. You’re also using the Link interface generated by Nexus to define the type of the links variable as an array of Link objects.
• // 2: You are extending the Query root type and adding a new root field to it called feed.
• // 3: You define the return type of the feed query as a not nullable array of link type objects (In the SDL the return type will look like this: [Link!]!).
• // 4: resolve is the name of the resolver function of the feed query. A resolver is the implementation for a GraphQL field. Every field on each type (including the root types) has a resolver function which is executed to get the return value when fetching that type. For now, our resolver implementation is very simple, it just returns the links array. The resolve function has four arguments, parent, args, context and info. We will get to these later.

Note: You might be wondering why you don’t have to implement resolvers for id, description and url field for the Link type. This will be clarified at the end of the chapter.

Let’s check out the changes in the GraphQL schema:

type Link {
  description: String!
  id: Int!
  url: String!
}

type Query {
  feed: [Link!]!
}

The Query root type has two changes. There is a new feed field. Now that you have added a custom field to the Query type, Nexus is no longer providing a default ok field, so that has been removed.

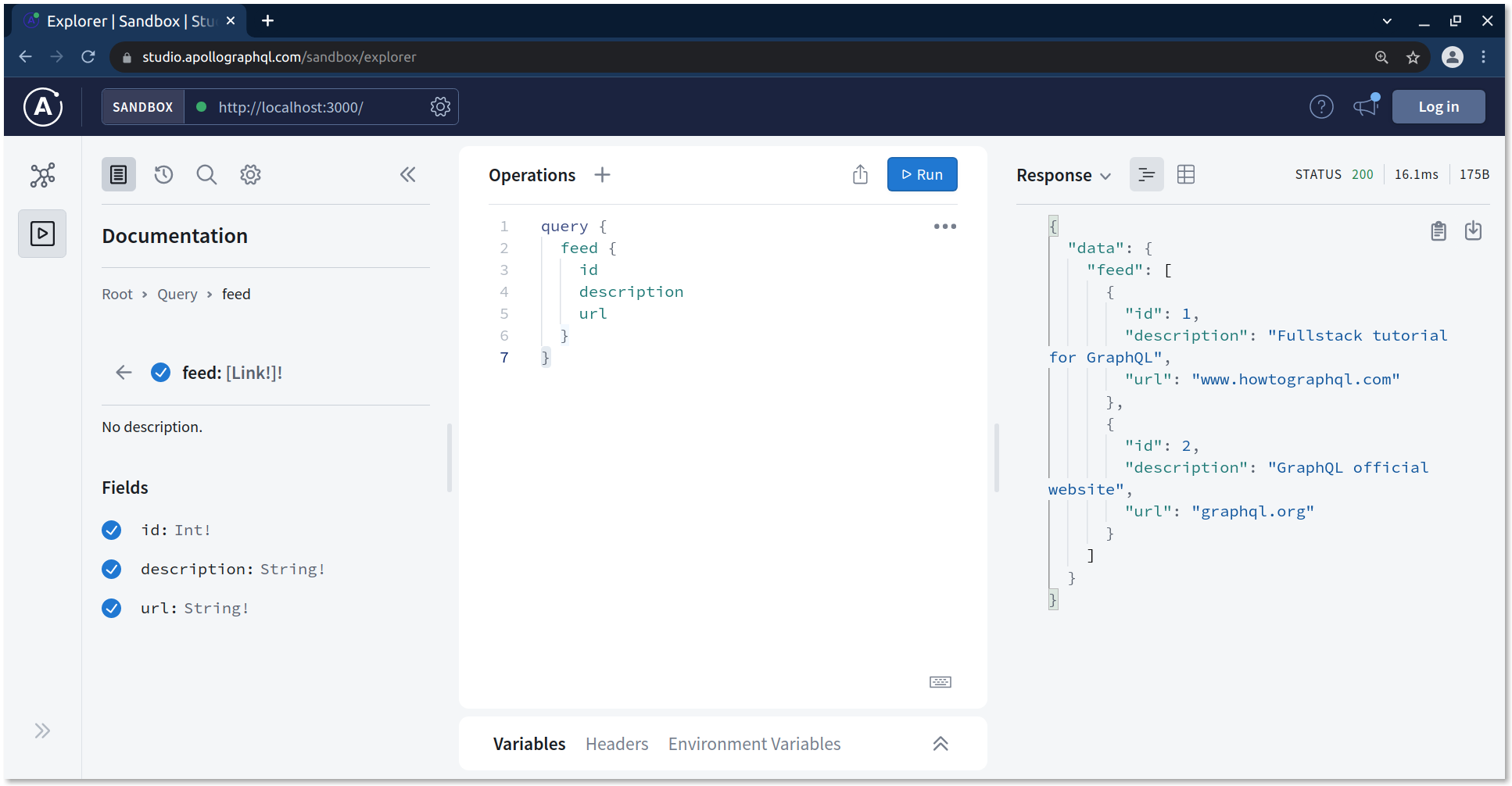

In Apollo Studio’s documentation window, you should see the feed query as well.

Try out the code you wrote by sending the following query:

query {
  feed {
    id
    url
    description
  }
}

Awesome, the server responds with the data you defined in links:

{
  "data": {
    "feed": [
      {
        "id": 1,
        "description": "Fullstack tutorial for GraphQL",
        "url": "www.howtographql.com"
      },
      {
        "id": 2,
        "description": "GraphQL official website",
        "url": "graphql.org"
      }
    ]
  }
}

The query resolution process

Let’s now quickly talk about how a GraphQL server actually resolves incoming queries. As you already saw, a GraphQL query consists of a number of fields that have their source in the type definitions of the GraphQL schema.

Let’s consider the query from above again:

query {
  feed {
    id
    url
    description
  }
}

All four fields specified in the query (feed, id, url, and description) can also be found inside the schema definition. Now, you also learned that every field inside the schema definition is backed by one resolver function whose responsibility it is to return the data for precisely that field.

Can you imagine what the query resolution process looks like now? Effectively, all the GraphQL server has to do is invoke all resolver functions for the fields that are contained in the query and then package up the response according to the query’s shape. Query resolution thus merely becomes a process of orchestrating the invocation of resolver functions!

It’s important to note that every GraphQL resolver function actually receives four input arguments. The first argument, commonly called parent (or sometimes root) is the result of the previous resolver execution level. Hang on, what does that mean? 🤔

Well, as you already saw, GraphQL queries can be nested. Each level of nesting (i.e. nested curly braces) corresponds to one resolver execution level. The above query therefore has two of these execution levels.

On the first level, it invokes the feed resolver and returns the entire data stored in links. For the second execution level, the GraphQL server is smart enough to invoke the resolvers of the Link type (because thanks to the schema, it knows that feed returns a list/array of Link elements) for each element inside the list that was returned on the previous resolver level. Therefore, in the resolvers for the three fields in the Link type (id, description and url), the incoming parent object is the element inside the links array.

Note 1: The word list and array are being used fairly interchangeably.

Note 2: If you’re having a hard time wrapping your head around the GraphQL execution process and order of execution, a nice example is available here.

Understanding trivial resolvers

One thing that’s still a bit weird in the implementation right now is the lack of resolvers for the fields in the Link type, namely id, description and url.

The reason that these fields do not need explicit resolver implementations is that the GraphQL type system is smart enough to automatically infer these resolvers. For example, the GraphQL server knows that the Link type contains the id field. So it will automatically resolve this field with the id variable available to each object in the link array.

In fact, many other GraphQL libraries will also let you omit trivial resolvers and will just assume that if a resolver isn’t provided for a field, that a property of the same name should be read and returned.

Note: To learn more about trivial resolvers, check out the GraphQL docs.
